HDC 1.15.904.008.1 SRX Scaling Receiver

Additional Information

Description Specification

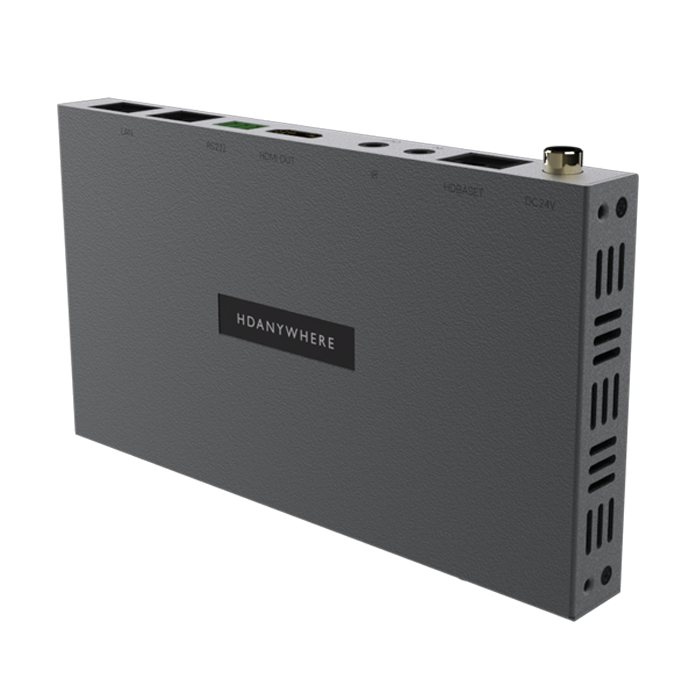

HDC 1.15.904.008.1 SRX Scaling Receiver

The ‘SRX’, compatible for use as an endpoint with all MHUB 4K matrix models - able to downscale 4K content to 2K, or upscale 2K content to 4K. SRX gives AV professionals a simple way to get over the real-world challenges of integrating a mix of 4K and 1080p displays within a single MHUB system, with all connected devices operating at best capability. The addition of the SRX means that all HDA MHUB 4K models deliver end-to-end 4K/60 Hz switching and scaling, including support for HDCP 2.2. The SRX eliminates the need for additional scaler boxes in 1080p zones, achieving easier device integration with less HDA hardware. The addition of a high quality scaling chip into an MHUB’s HDBaseT display receiver simplifies, what would otherwise be, complex installs, to deliver brilliant razor-sharp images and smooth motion on every single display.

Warranty: To match MHUB used with (2 Years if sold separately)
Form: On Wall
Product Type: Scaler, Matrix Receiver
Supported Video Inputs: HDBaseT
Maximum video inputs: 1
Supported outputs HDMI
Audio Output Types: TBC
Maximum video outputs: 1
Mirrored video outputs: 0
Supported audio formats Dolby Digital 5.1 , Dolby Digital EX 6.1, Dolby Digital Plus 7.1 , Dolby Digital 2.0 , Dolby Digital EX 6.1, Dolby TrueHD 5.1, Dolby TrueHD 7.1, DTS 5.1, DTS-HD Master 5.1, DTS-HD Master 7.1, DTS 96/24 5.1, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, LPCM 2.0, LPCM 5.1, LPCM 6.1, LPCM 7.1, PCM 2.0, Dolby Atmos 5.1.2, Dolby Atmos 5.1.4, Dolby Atmos 7.1.2, Dolby Atmos 7.1.4, Dolby Atmos 9.1.2
Control Method: IR
IR Control: 2-way
Receiver Power: POE
Dimensions (H x W x D) : 18 x 164 x 90 mm
Warranty: To match MHUB used with / 2 Years if sold separately

Features

  • Downscale 4K sources to properly display on 1080p displays.
  • Frame rate matching 4K/60 downscales to 1080p/60 and 4K/24 downscales to 1080p/24.
  • Upscale 1080p and higher resolutions to 4K displays at up to 60 Hz frame rate
  • Use with ALL MHUB systems.
