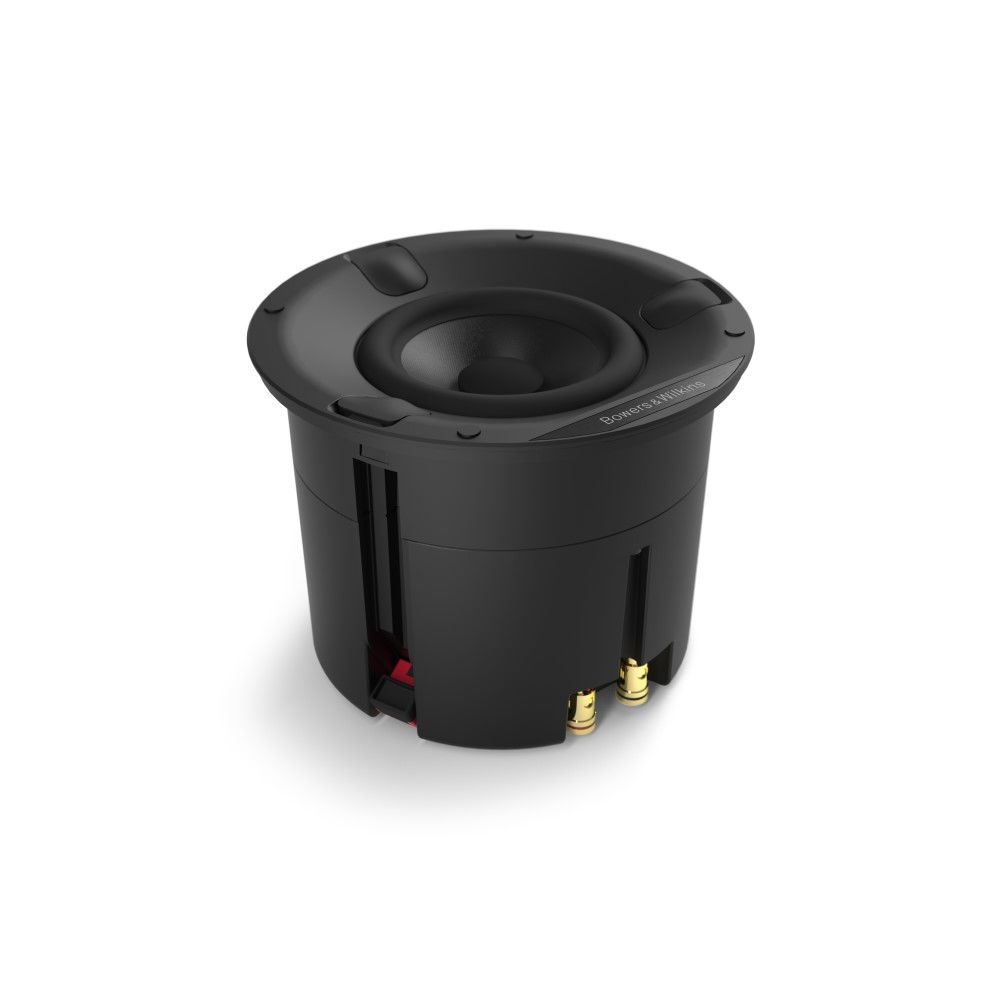

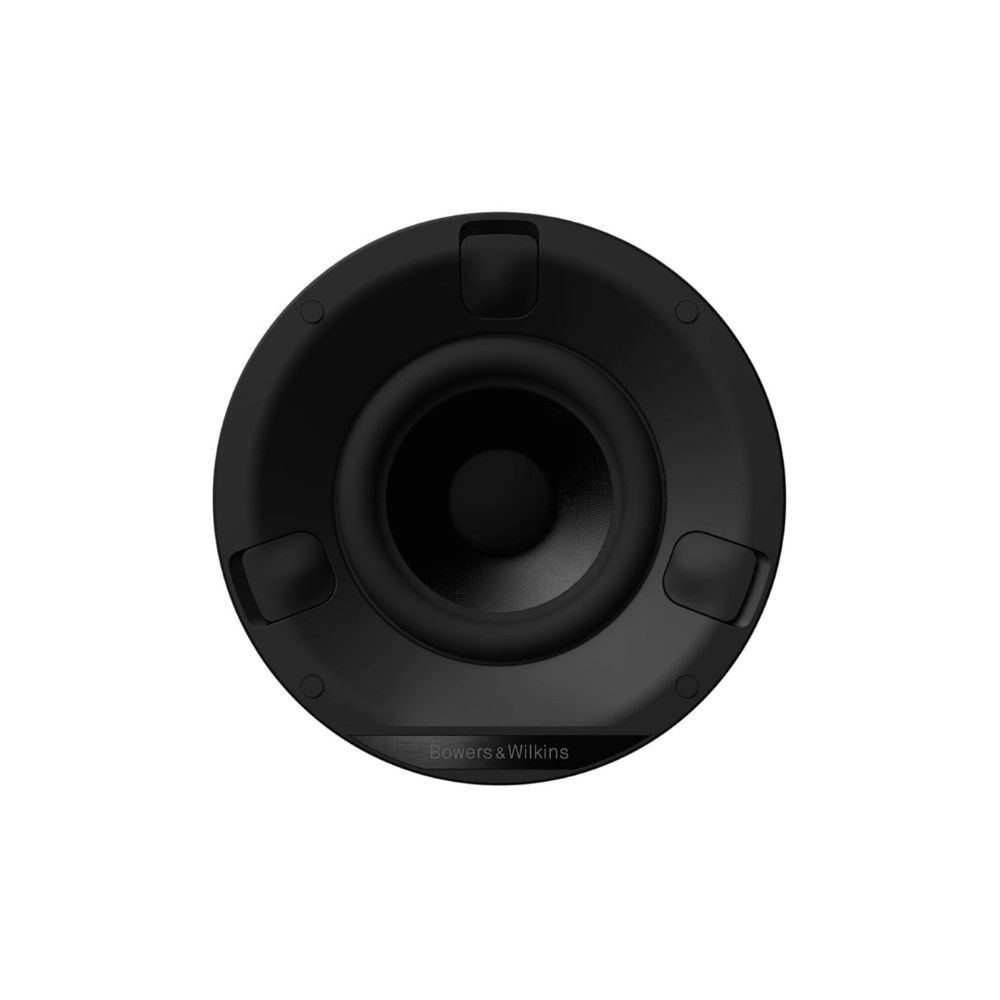

Bowers & Wilkins CCM632 600 Series 3" In Ceiling Speaker (FP37613) Pair

Stock Code: CCM632(P)

CCM632: Performance Series Pair

Our Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios.

See nothing, hear everything

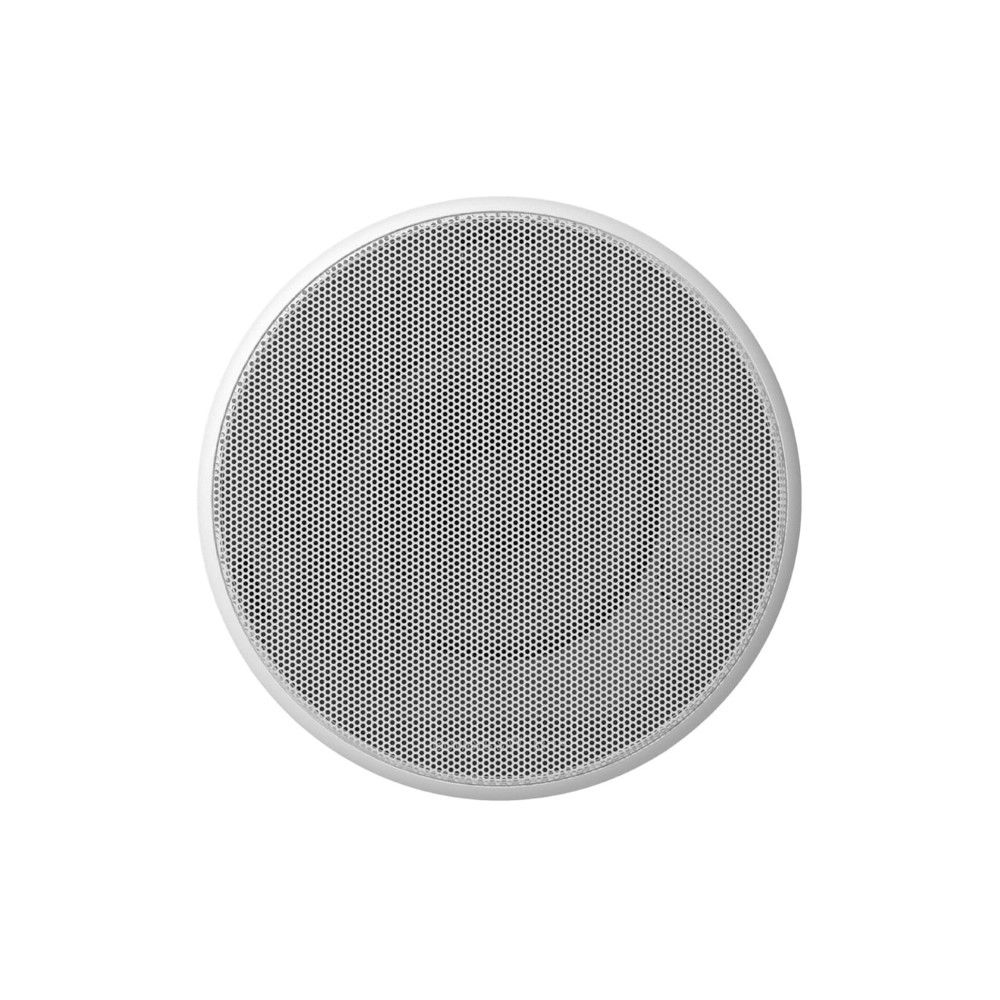

In-ceiling speakers, designed to squeeze into small spaces or be used in multiples for diffuse, background sound, are really difficult to get right. If the driver’s too small, there won’t be enough bass without adding a bulky subwoofer, but the common alternative is a 2-way where the tweeter sits in front of a small bass/midrange driver. The problem with these is the driver fires around the tweeter’s body, inevitably leading to colouration. The new Bowers & Wilkins CCM632 is a single 75mm (3inch) full-range driver with a beautifully well-balanced sound, that sidesteps traditional small speaker issues yet still takes up less than 150mm (6”) diameter space installed. The CCM632 also features Bowers & Wilkins new and innovative ZipDogs™ fixing method. These make short work of installation and cope with almost any thickness of mounting panel. Each speaker comes with an integral enclosure to minimise acoustic bleed into adjoining spaces. Speakers are supplied in pairs, with each pack including round and square magnetically fixed, and fully customisable, grille/bezel assemblies.

  • Small Aperture
  • Pair with ISW-3
  • Square and round grilles included
  • Description: Single driver in-ceiling system
    Drive Units: 1x Ø75mm (3 in) paper cone full-range
    Frequency Range (-6dB): 100Hz – 17kHz
    Frequency response (+/- 3dB): 112Hz - 16kHz
    Nominal Impedance: 8Ω (minimum 5Ω)
    Power Handling: 10 - 60W
    Sensitivity: 84dB
    Cut-out: 120mm
    Frame: 147mm
    Depth behind surface: 100mm
    Protrusion: 5.5mm
    Pre-Mounting Kit: PMKC3
    Back Box: Integral
    Manufacturer's Warranty* 5 years
    Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
    Please complete this online Returns Form
    After 14 Days Of Purchase*:
    (Within The Manufacturer's Warranty):
    Return to AWE for assessment.
    Please complete this online Form
    Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
    *Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
    Name File Name
    CCM632 Dimensions - PDF and DWG CCM632 Dimensions - PDF and DWG.zip
    CCM632 Quick Start Guide CCM632 Quick Start Guide.pdf
    CCM632-Infosheet CCM632-Infosheet.pdf
