Bowers & Wilkins CCM664 600 Series 6" In Ceiling Speaker (FP29580) Pair

Additional Information

Description

Specification

Downloads

CCM664: Performance Series Pair

Our Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios.

See nothing, hear everything

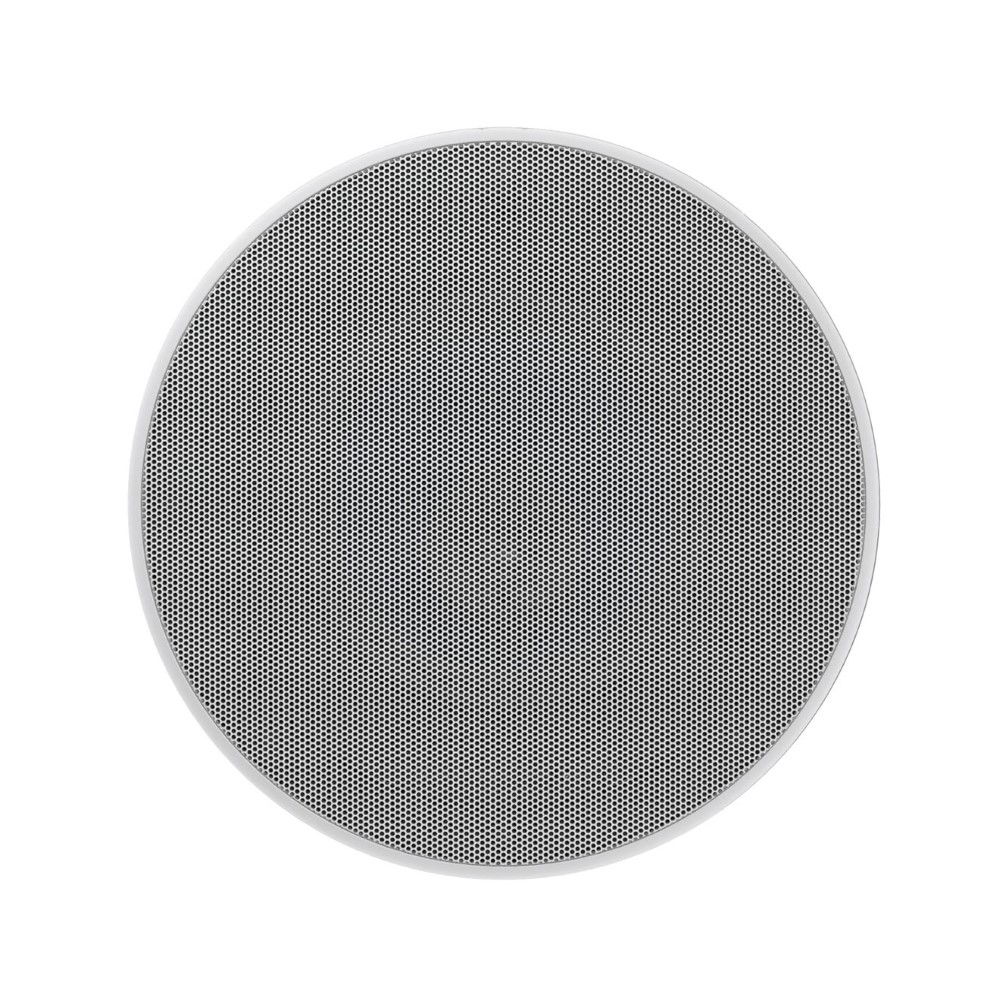

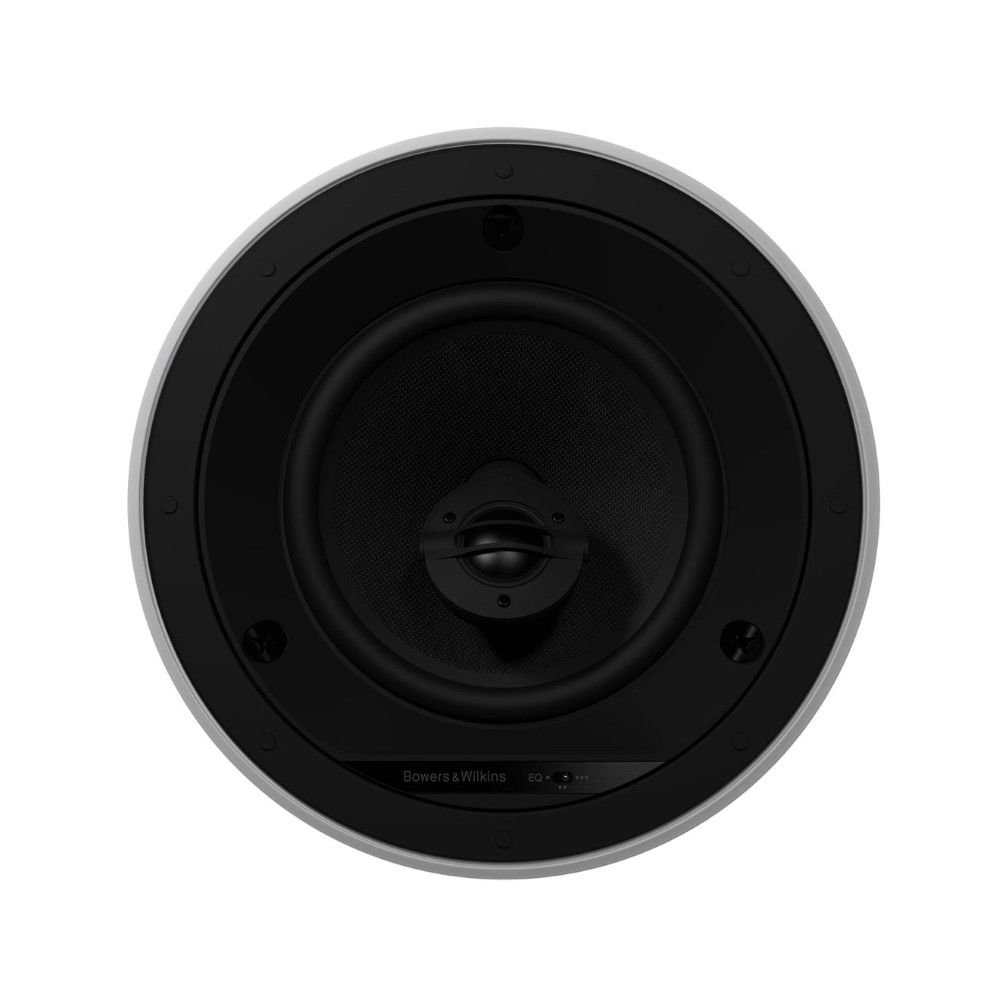

The CCM664 is a ceiling speaker distinguished by its adjustable tilt offset 25mm (1in) soft dome tweeter. It brings both a smoother and more detailed high frequency performance to a package that also includes a woven glass fibre150mm (6in) bass/midrange driver and three-position EQ switch for a better off-axis response. CCM664 is a classically simple and cost effective route to high quality ceiling mount sound and is simple and quick to install.

Description:	2-way in-ceiling system
Drive Units:	1x ø25mm (1in) soft dome tweeter 1x ø150mm (6in) black glass fibre cone bass/midrange
Frequency Range (-6dB):	45Hz – 35kHz
Sensitivity:	87 dB
Nominal Impedance:	8Ω (minimum 4.5Ω)
Power Handling:	25 - 130W per channel
Frame Diameter:	240mm
Cut-out Diameter:	202mm
Depth behind surface:	133mm
Protrusion:	4mm
Pre-Mounting Kit:	PMKC6
Back Box:	BB 6C
Manufacturer's Warranty*:	5 years
