HD Anywhere XTND4K40TPC 4K HDMI Extender with TPC

Additional Information

Description Specification

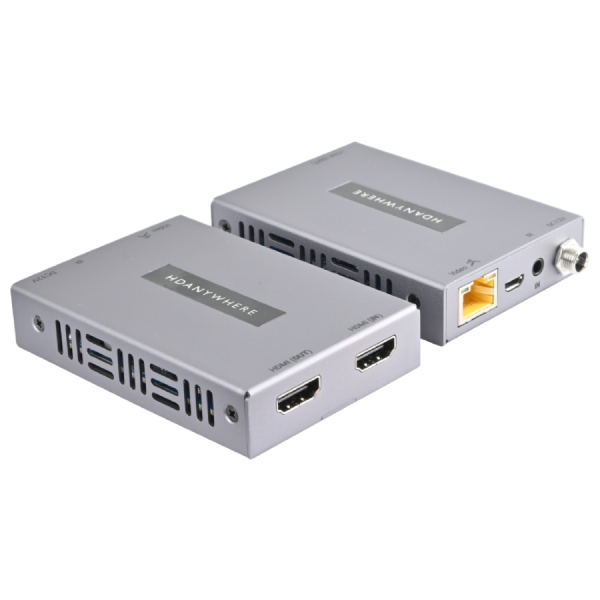

HD Anywhere XTND4K40TPC 4K HDMI Extender with TPC, Dark Grey

A compact, palm-sized HDMI 2.0 / HDBaseT 2.0 extender set - supports 18Gbps premium UHD/4K 60Hz 4:4:4 data rates, with all current HDR formats inc. Dolby Vision®, HDR10 and HLG up to 40 metres, over one twisted pair Cat cable. Control of the transmitter source is made possible via a return IR channel and included IR cabling. Tipping Point Compression w/DSC enables the transmission of 18Gbps content via HDBaseT 2.0 technology, with no human-perceivable difference in video quality.

TPC can handle all HDR formats, including Dolby Vision, retaining all original HDR Meta and is compatible with all chroma subsampling and colour space options (4:4:4, 4:2:2, and 4:2:0).

Technical Information
TX / RX form factor: Palm-sized, ultra lightweight aluminium enclosure
Inputs / outputs: TX HDMI in / HDMI loop out / RJ45 HDMI over CAT out / 1x IR 3.5mm jack (out = from RX)RX RJ45 HDMI over CAT in / HDMI out / 1x IR 3.5mm jack (in = to TX)
Transmission tech: HDMI over CAT + TPC w/DSC
Video bandwidth: 594MHz clock / 18Gbps data
ESD protection: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Control: Uni-directional IR, HDMI-CEC Passthrough
Device / Package weight: 56 / 700 g
Dimensions (W/D/H): 88 / 60 / 16 mm (TX and RX)
Power: DC12V/3A DC screw type connector
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Relative humidity: 20~90 % RH (non-condensing)
Power consumption: 30W (max) 0.5W (standby)
Warranty Info
Manufacturer's Warranty*: 2 Years
Faulty From New*:
(Within 28 Days Of Purchase)		 Return to AWE for assessment.
Please complete this online Returns Form
After 28 Days Of Purchase*:
(Within The Manufacturer's Warranty)
*Terms & Conditions: For further information regarding AWE's returns procedures please see chapters 7 & 8 in our Terms & Conditions

Features

  • HDMI® 2.0 (a/b) HDCP 2.2 compliant
  • 18Gbps data rate throughout (up to 40m)
  • HDMI 2.0 (Native 18G) loop port on TX
  • Supports all resolutions up to and inc. Ultra HD 4K 60 4:4:4 and Dolby Vision®
  • Supports all current audio formats up to Dolby Atmos® and DTS:X®
