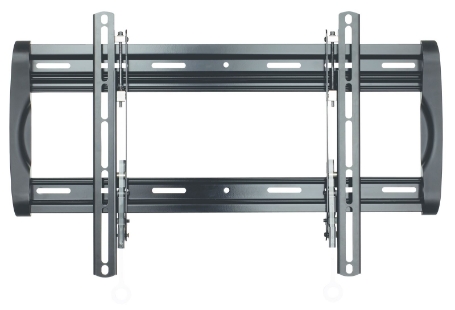

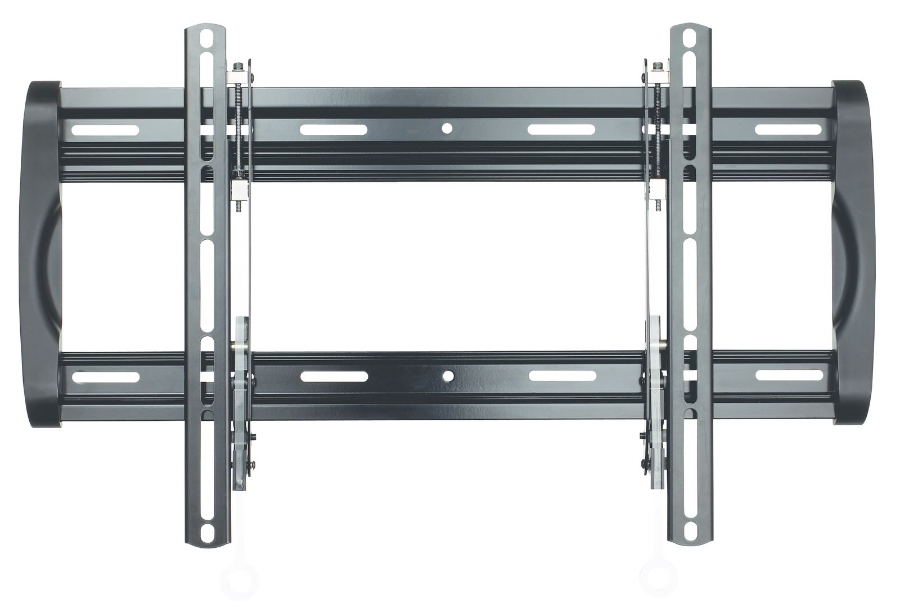

Sanus LL22B2, Fixed-Position Wall Mount for 37" – 90" Weight Capacity 79Kg

Additional Information

Description Specification Downloads

Sanus LL22B2


Vesa 708 x 440 (U) Weight Capacity 79Kg 3.8 cm depth, Lateral Shift, Post-installation Level Adjustment, Distance Holders

The SANUS LL22 is a fixed-position wall mount for 37" – 90" flat-panel TVs up to 175 lbs / 79.55 kg. SANUS' unique ProSet™ post-installation height and levelling adjustments ensure TVs are always perfectly positioned after hanging. Quick-release tabs allow the TV to unlock instantly from the wall plate for easy installation, while its low-profile design places the TV nearly flush to the wall for a clean appearance. The innovative ClickStand™ feature holds the TV away from wall for easy cable installation and maintenance, then snaps shut to secure the TV to the wall plate. The LL22 features an open wall plate design that provides ample room for cable routing, and ClickFit™ technology allows a surge protector to attach easily to the centre of the mount, so it stays hidden yet easily accessible. The TV can also be shifted left and right on the wall plate for perfect placement, even with off-centre studs. Powder-coated steel construction offers strength and durability. Universal mounting brackets. Compatible with the VMA201 soundbar speaker mount. Mount now fits TVs 37” – 90”, and all current LL22 models have been tested for compatibility with the updated size range.

Supported VESA Patterns

100 x 100

100 x 200

200 x 100

200 x 200

200 x 300

200 x 400

300 x 100

300 x 200

300 x 300

300 x 400

400 x 100

400 x 200

400 x 300

400 x 400

500 x 100

500 x 200

500 x 300

500 x 400

600 x 100

600 x 200

600 x 300

600 x 400

700 x 200

700 x 300

700 x 400

Maximum TV Weight 175lbs / 79.38kg
Universal Mounting: Y75 x 100 through 708 x 440
Product Width 30.00" / 76.20cm
Product Height: 18.25" / 46.36cm
Product Depth: 1.50" / 3.81cm
Product Weight: 12.50lbs / 5.67kg
Warranty: 10 Years RTB

Features

  • Conceal unsightly cables
  • Expandable TV brackets ensure a perfect fit
  • Hardware included
  • Levelling adjustments allow TV to be perfectly positioned after hanging
  • Our TV Mount products are Safety Tested and UL Certified
  • Perfect for viewing TV at eye level
  • Position your TV as close to the wall as possible
  • Pull down on hidden straps to access cables behind your TV
  • Slide TV side-to-side for perfect positioning on the wall
