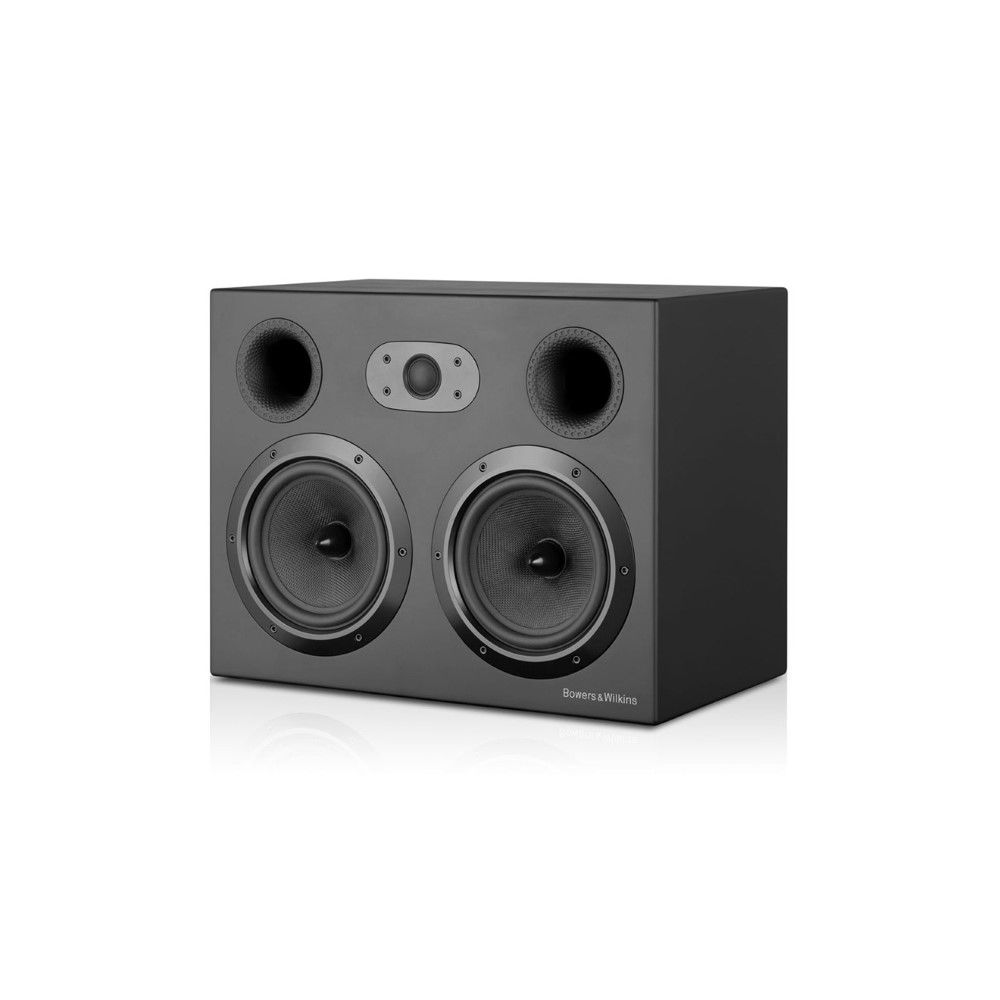

Bowers & Wilkins CT7.4 2 Way Vented Box Speaker (FP27332) Single unit

Additional Information

Description Specification Downloads

CT7.4 LCRS: CT700 Series

A genuinely cinematic experience in your own home

As versatile as it is powerful. You can build your own CT700 home cinema sound system using any combination of models in any position.
Twin 15cm mid/bass units bring on the CT7.4 LCRS's power, while the famous Nautilus™ tube-loading delivers pure, detailed treble, making this an ideal speaker for use in music or multichannel installations.

Bowers & Wilkins CT700 Series represents nothing less than a revolution in what can be achieved when space and budget are limited. CT700 creates a cinema sound more lifelike, more immersive, and more powerful than you would have imagined possible at this price level. Forget compromise: with a CT700 system, what you get is nothing less than a genuinely cinematic experience in your own home.

Description: 2-way vented-box system
Technical Features: Nautilus™ tube loaded tweeter
Aramid Fibre bass/midrange cone
Flowport™
Magnetically attached grille
Drive Units: 1x ø25mm (1 in) cloth dome high-frequency
2x ø165mm (6.5 in) woven Aramid Fibre cone bass/midrange
Frequency Range: -6dB at 43Hz and 28kHz
Frequency Response: 49Hz – 22kHz ±3dB on reference axis
Dispersion: Within 2dB of reference response
Horizontal: over 60º arc
Vertical: over 10º arc
Sensitivity: 94dB
Harmonic Distortion: 2nd and 3rd harmonics (90dB, 1m)
< 1% 90Hz – 20kHz
Nominal Impedance: 8Ω (minimum 4.0Ω)
Crossover Frequency: 4kHz
Recommended Amplifier Power 50W – 150W into 8Ω on unclipped programme
Maximum Recommended Cable Impedance: 0.1Ω
Dimensions: Height: 343mm
Width: 444mm
Depth: 265mm
Depth with grille: 288mm
Net Weight: 15.75kg
Manufacturer's Warranty*: 5 years
Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
Please complete this online Returns Form
After 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):
Return to AWE for assessment.
Please complete this online Form
Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
*Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Features

  • Nautilus™ tube loaded tweeter
  • Aramid Fibre bass / midrange cone FST™
  • Magnetically attached grille
  • Flowport™
