HDA XTND Audio(100)eARC. Audio Extender up to 100m inc eARC

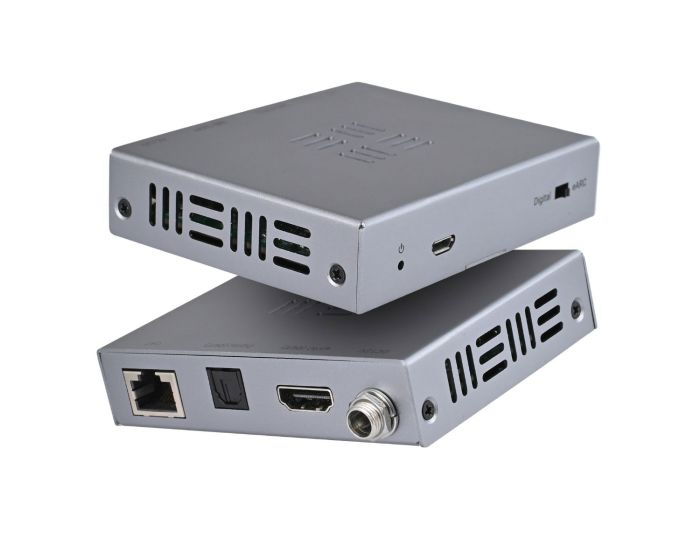

Connect eARC-enabled Smart displays with remotely located eARC-compatible AV Receivers or amplifiers, delivering digital stereo to Dolby Atmos audio and CEC control commands seamlessly over Cat 6 cable at distances up to 100m. Supplied as a compact transmitter + receiver kit with a single bi-directional PSU.

eARC (up to Dolby Atmos) from eARC display to eARC AVR/amplifier

CEC controls from display to AVR/amplifier

Toslink digital optical audio (up to 5.1) from display to AVR/amplifier

100m Transmission distance (full-copper Cat 6)

Power the kit with supplied PSU at either TX or RX

AV Specifications
	Audio Formats:	LPCM 2ch Dolby /DTS 5.1
	HDMI Version:	2.0b. 18Gbps, HDCP 2.2 compliant
	Video Formats:	Up to 4K60 (4:4:4) HDR (no video is transmitted over the data cable)
	Max transmission distance:	100m over full-copper Cat 6 data cable
General
	TX/RX Dimensions (WxLxD):	90mm x 70mm x 20mm
	Warranty:	2 years

Name	File Name
XTNDAUDIO100EARC Instruction Manual	XTNDAUDIO100EARC Instruction Manual.pdf
