HDA XTNDAudio(300) Audio 300m extender

HDA XTND Audio (300) Audio extender up to 300m

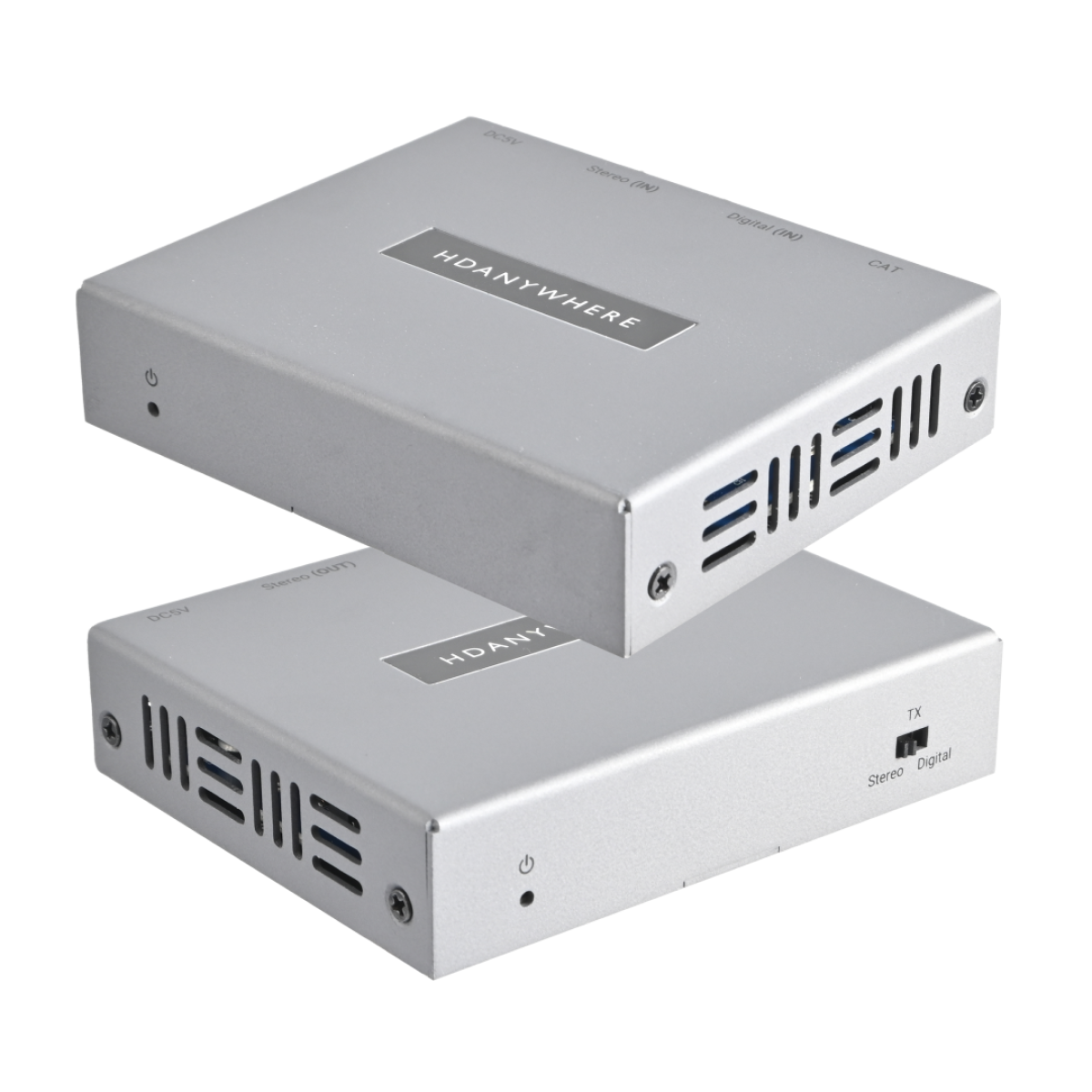

Audio extender capable of increasing range of either stereo or digital audio up to 300m (984ft).

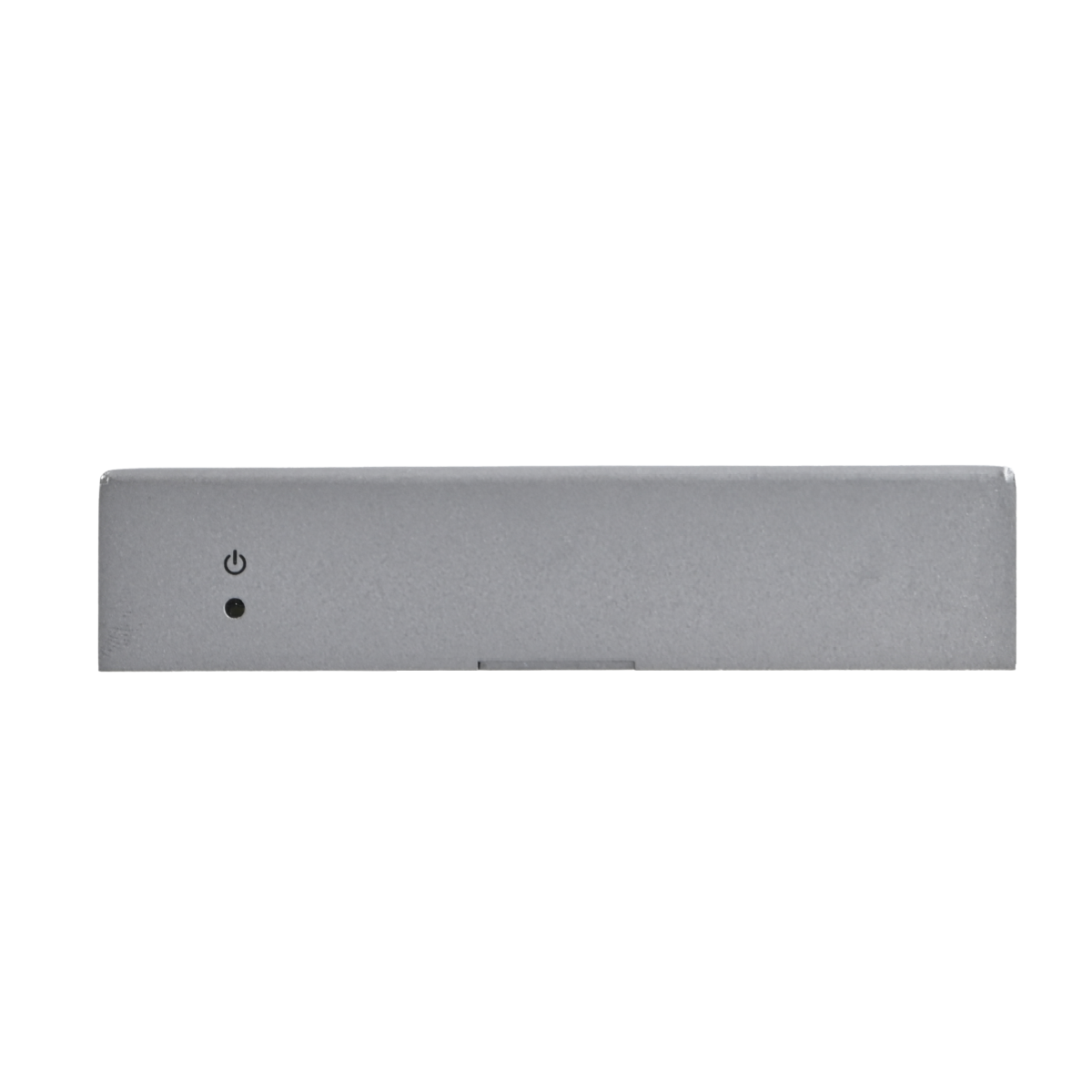

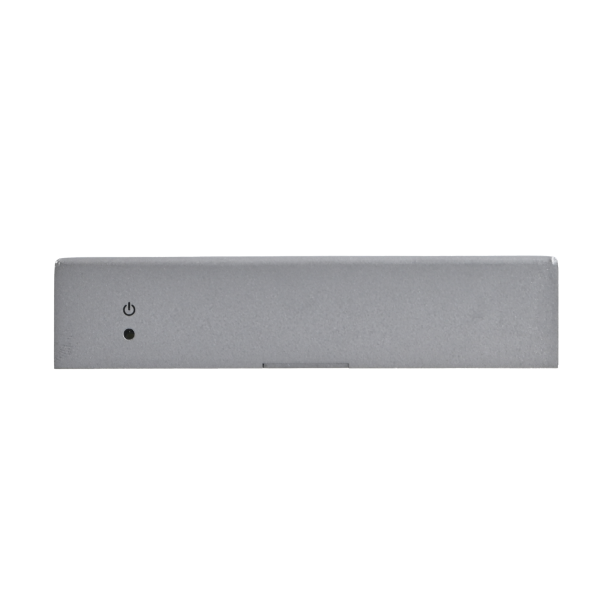

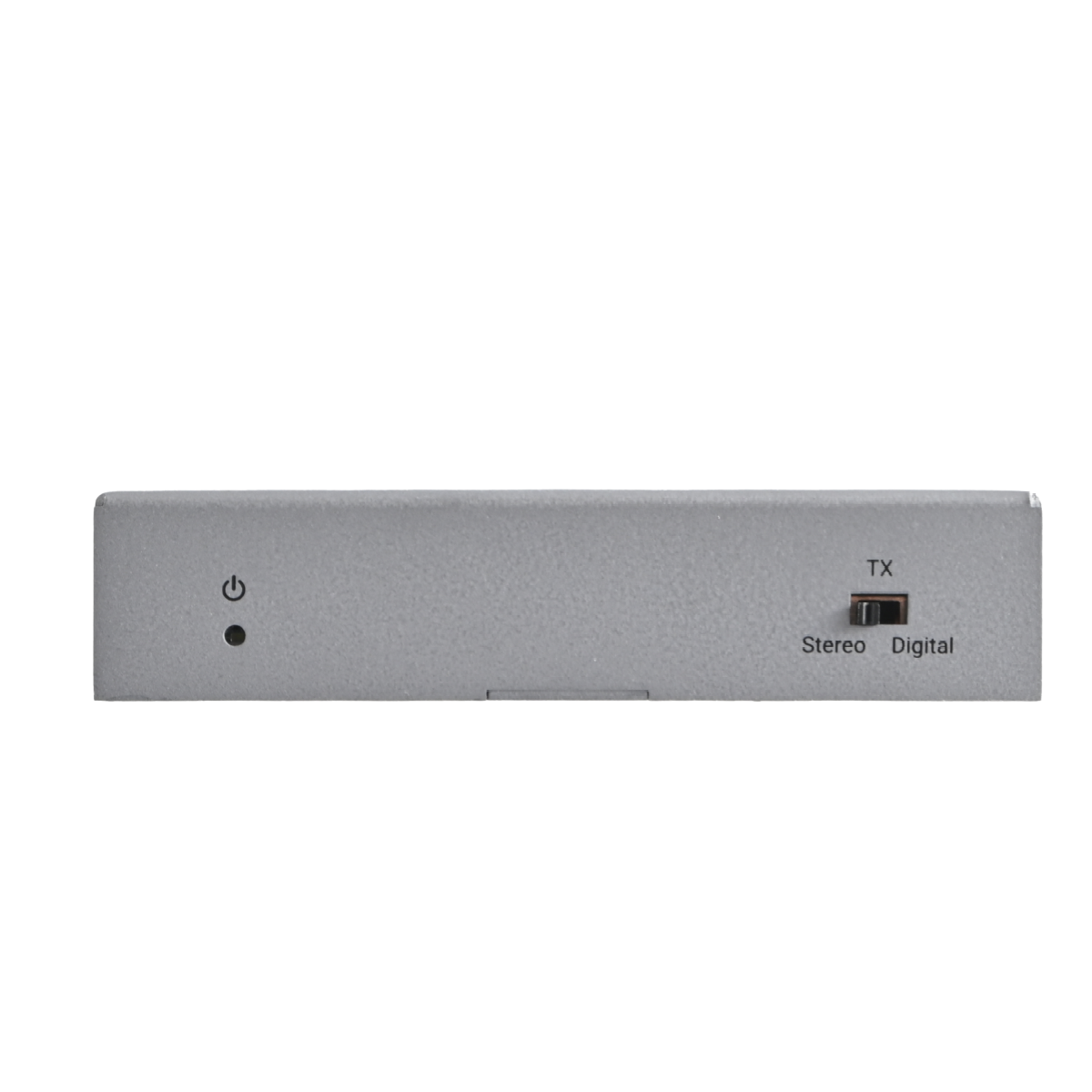

Power
Indicator light. If this light is on and solid then the XTND transmitter has power.

DC5V
Connect the supplied power supply to this port to provide power to the XTND transmitter and receiver.

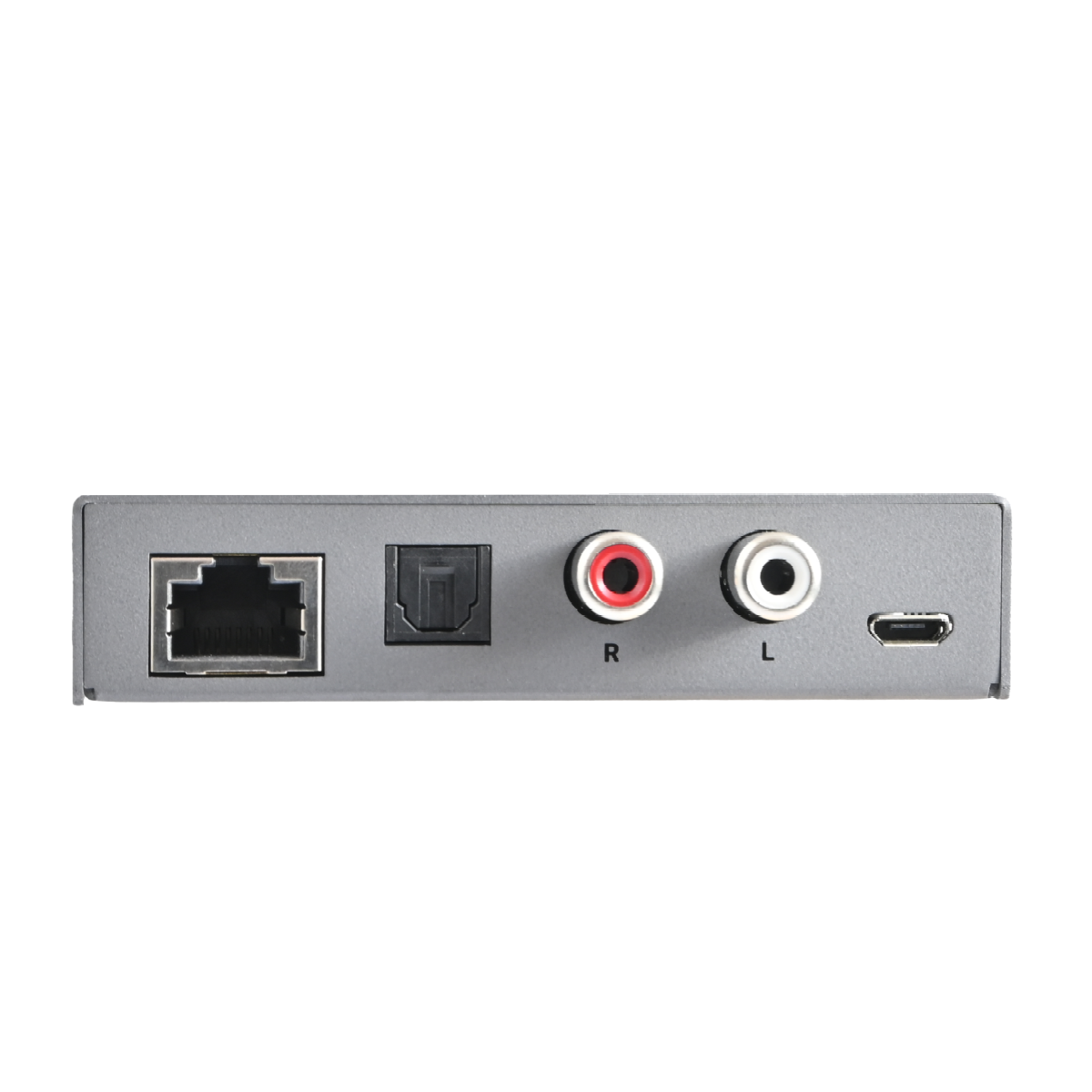

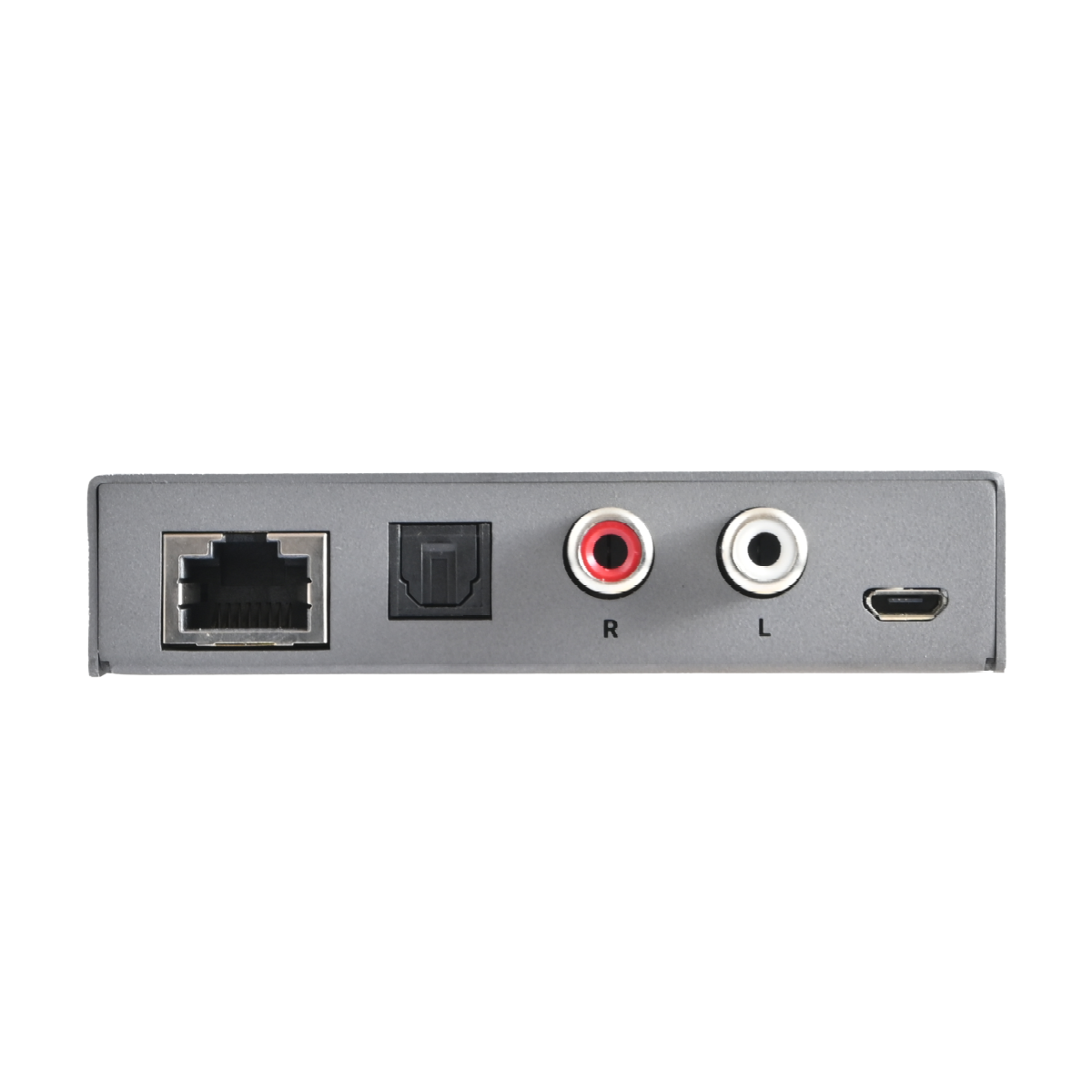

Stereo (IN)
Analogue audio input port. Connect a RCA cable from your audio source to this port.

Digital (IN)
Digital optical input port. Connect an Optical Toslink cable from your audio source to extend audio and multi-channel audio streams.

CAT
Connect the XTND Transmitter to the Receiver via the CAT port. Use any standard Cat 5e/6 cable.

Extend digital and analogue audio signals up to a maximum distance of 300m / 984ft over single Cat 5e/6 cable

Distances supported: 100m / 328ft @ 192KHz, 150m / 492ft @ 96KHz, 300m / 984ft @ 48KHz

Bi-directional Power over Cable (PoC)

Digital audio support including: LPCM, DTS, Dolby Digital, Dolby Digital Plus

Ultra-low jitter

Plug-and-Play design

General
	Transmission distance:	100m/328ft: 192KHz 150m/492ft: 96KHz 300m/984ft: 48KHz
	Audio I/O:	Inputs: x1 Optical, x1 Stereo RCA (L/R) Outputs: x1 Optical, x1 Stereo RCA (L/R)
	Audio formats support:	Stereo: PCM 2.0 Optical: LPCM 2.0, LPCM 5.1, Dolby Digital 2.0/5.1
	SPDIF audio formats:	PCM 2.0, Dolby Digital / Plus, DTS
	Sample rates:	32KHz, 44.1KHz, 48KHz, 96KHz, 176.4KHz, 192KHz @ 24-bit
	ESD protection:	±8kV (Air-gap discharge) ±4kV (Contact discharge)
	Power consumption:	1.5W (Maximum)
	Power supply:	DC 5V 1A
	Operating temperature:	0°C - 40°C / 32°F - 104°F
	Storage temperature:	-20°C - 60°C / -4°F - 140°F
	Relative humidity:	20 - 90% (Non-condensing)
	Housing:	Steel
	Colour:	Grey (Carbonite)
	Dimensions (W/H/D) mm:	90 x 72 x 20 (Both Transmitter and Receiver are the same)
	Weight	174g (Both Transmitter and Receiver are the same)
	Package weight:	500g
