Bowers & Wilkins CWM664 600 Series 6" In Wall Speaker (FP29681) Pair

Additional Information

Description

Specification

Downloads

CWM664: In-Wall Performance Series Pair

Performance Series
For situations when you want near-invisible loudspeakers but refuse to compromise on sound quality. CI 800 Series Diamond and CI 700 Series models feature matching performance levels to their in-room counterparts in the 800 Series Diamond and 700 Series.

See nothing, hear everything

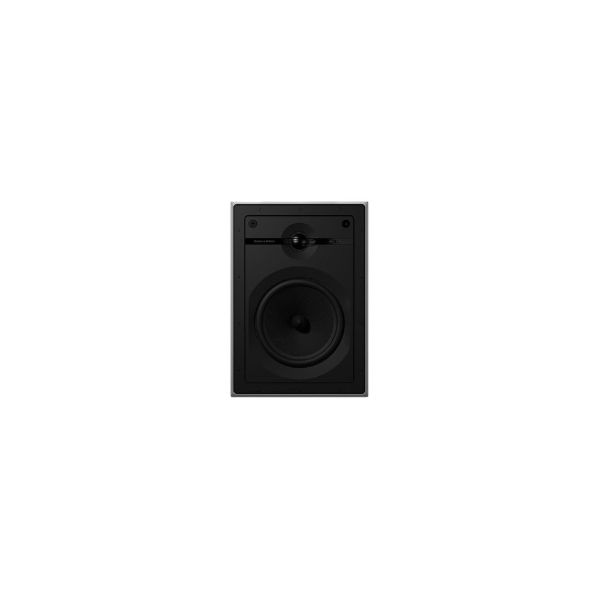

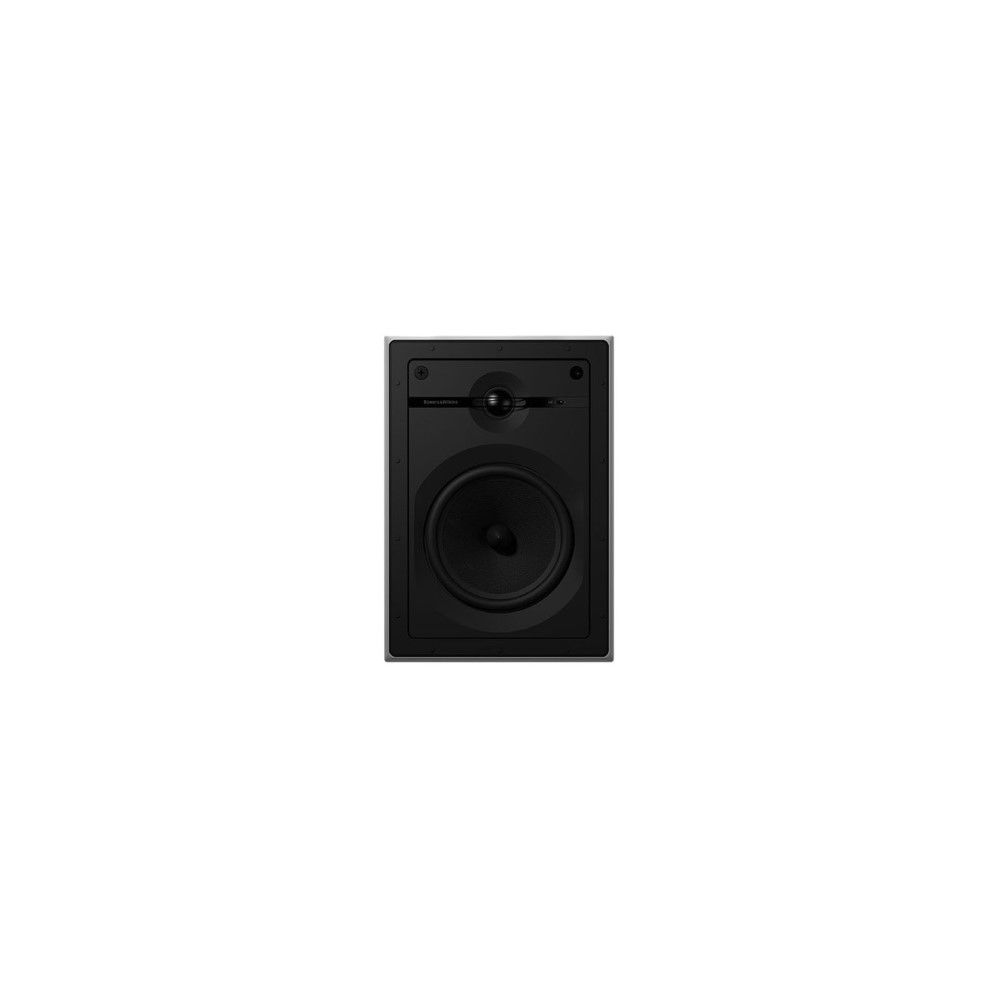

The CWM664 is an in-wall speaker distinguished by its 25mm (1in) soft dome tweeter. It brings smoother and more detailed high frequency performance to a package that also includes a woven glass fibre 150mm (6in) bass/ midrange driver and three-position high frequency switch to fine tune the sound. Installation is catered for by a simple and effective QuickDog™ fixing system. The CWM664 is an elegantly engineered and cost-effective route to high quality in-wall sound.

Description:	2-way in-wall system
Drive Units:	1x ø25mm (1in) Nautilus™ tube loaded aluminium dome tweeter 1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB):	45Hz – 35kHz
Maximum Amplifier Power:	25 - 130W
Sensitivity:	87.5dB
Nominal impedance:	8Ω (minimum 4.5Ω)
Frame Height:	315mm
Frame Width:	221mm
Cut-out height:	279mm
Cut-out width:	183mm
Depth behind surface:	95mm
Protrusion:	4mm
Pre-Mounting Kit:	PMKW6
Back Box:	BB 6W
Manufacturer's Warranty*:	5 years
Faulty From New*: (Within 14 Days Of Purchase):	Return to AWE for assessment. Please complete this online Returns Form
After 14 Days Of Purchase*: (Within The Manufacturer's Warranty):	Return to AWE for assessment. Please complete this online Form
Post-Warranty Service and Repair:	Please contact an authorised service centre: Sontec or Sound System Technology
*Terms & Conditions:	For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions
