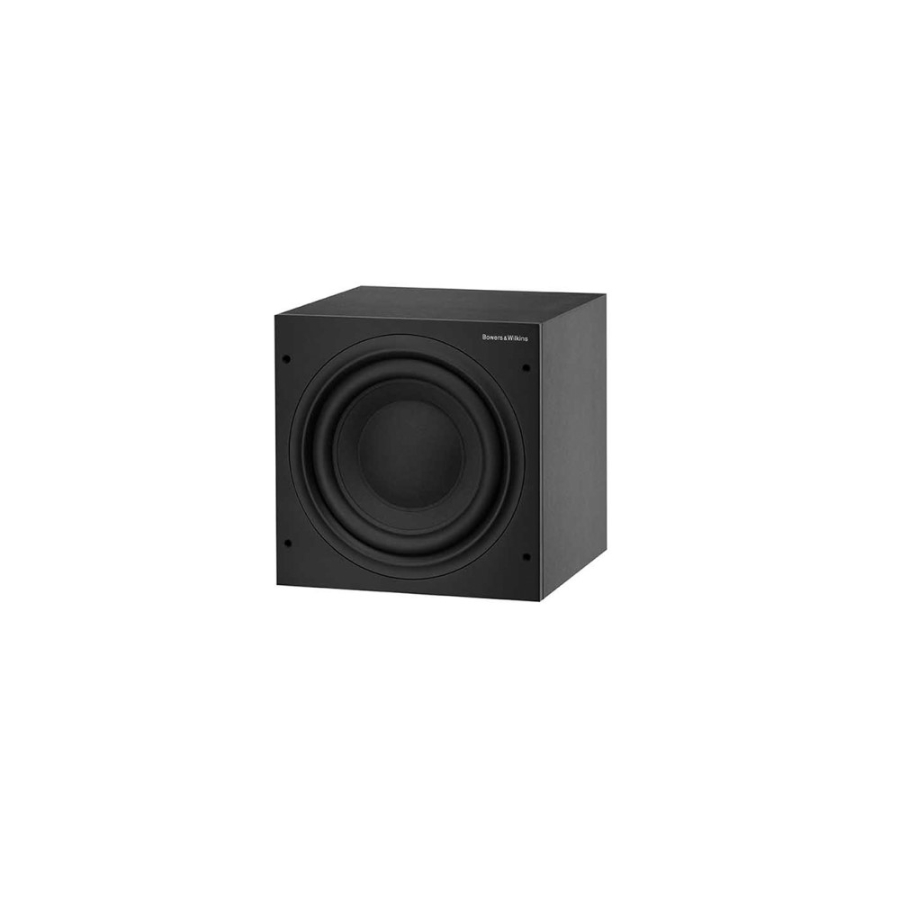

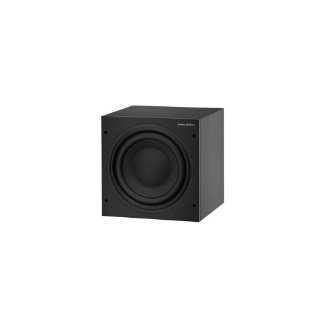

ASW610-Black-Grille-Off-Angle
ASW610-Black Grille On Angle

Additional Information

Description Specification Downloads

ASW610: 600 Series Subwoofer -Black

ASW610 is compact, making it a subwoofer you can squeeze in anywhere. Or maybe use two for more bass control?
ASW610's long-throw 250mm driver allows it to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool.

Sealed tight
ASW610's sealed enclosure keeps the bass good and tight (and exciting!).

All the power you'll need...

Technical Features: Input level (line in)
Input level (speaker in)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Drive Unit: ø250mm (10 in) paper / Aramid fibre cone long-throw
Power Output: 200W
Rated Power Consumption: 40W
Standby Power Consumption: 0.5W
Input impedance: 33kΩ
Signal / Noise: >90dB
Frequency Range: -6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)
Frequency Response: ±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)
Inputs: Line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Bass Extension: -6dB at 20Hz (position A)-6dB at 25Hz (position B)-6dB at 30Hz (position C)
Dimensions: Height: 310mm (322mm including feet, 338mm including spikes)
Width: 325mm
Depth 347mm (375mm including grille and controls)
Colour: Matte Black
Net Weight: 12.5kg
Manufacturer's Warranty*: 2 years
Faulty From New*: (Within 14 Days Of Purchase): Return to AWE for assessment.
Please complete this online Returns Form
After 14 Days Of Purchase*:
(Within The Manufacturer's Warranty):		 Return to AWE for assessment.
Please complete this online Form
Post-Warranty Service and Repair: Please contact an authorised service centre: Sontec or Sound System Technology
*Terms & Conditions: For further information regarding AWE's returns procedures, please see chapters 7 & 8 in our Terms & Conditions

Features

  • Bass roll-off alignment
  • Low-pass filter bypass
  • Input level - speaker in
  • Phase switch
