HD Anywhere XTND4K402ARCTPC 4K HDMI Extender with ARC & TPC, Dark Grey

Our most slender, super-slim and ultra-lightweight HDMI 2.0 / HDBaseT 2.0 extender set - supports 18Gbps premium UHD/4K 60Hz 4:4:4 data rates, with all current HDR formats inc. Dolby Vision®, HDR10 and HLG up to 40 metres, over one twisted pair Cat cable.

Audio return is possible to optical on the TX or optical on RX to optical on TX. Control via two-way IR and RS232 are also available.

Tipping Point Compression w/DSC enables the transmission of 18Gbps content via HDBaseT 2.0 technology, with no human-perceivable difference invideo quality. TPC can handle all HDR formats, including Dolby Vision, retaining all original HDR Meta and is compatible with all chroma subsampling and colour space options (4:4:4, 4:2:2, and 4:2:0).

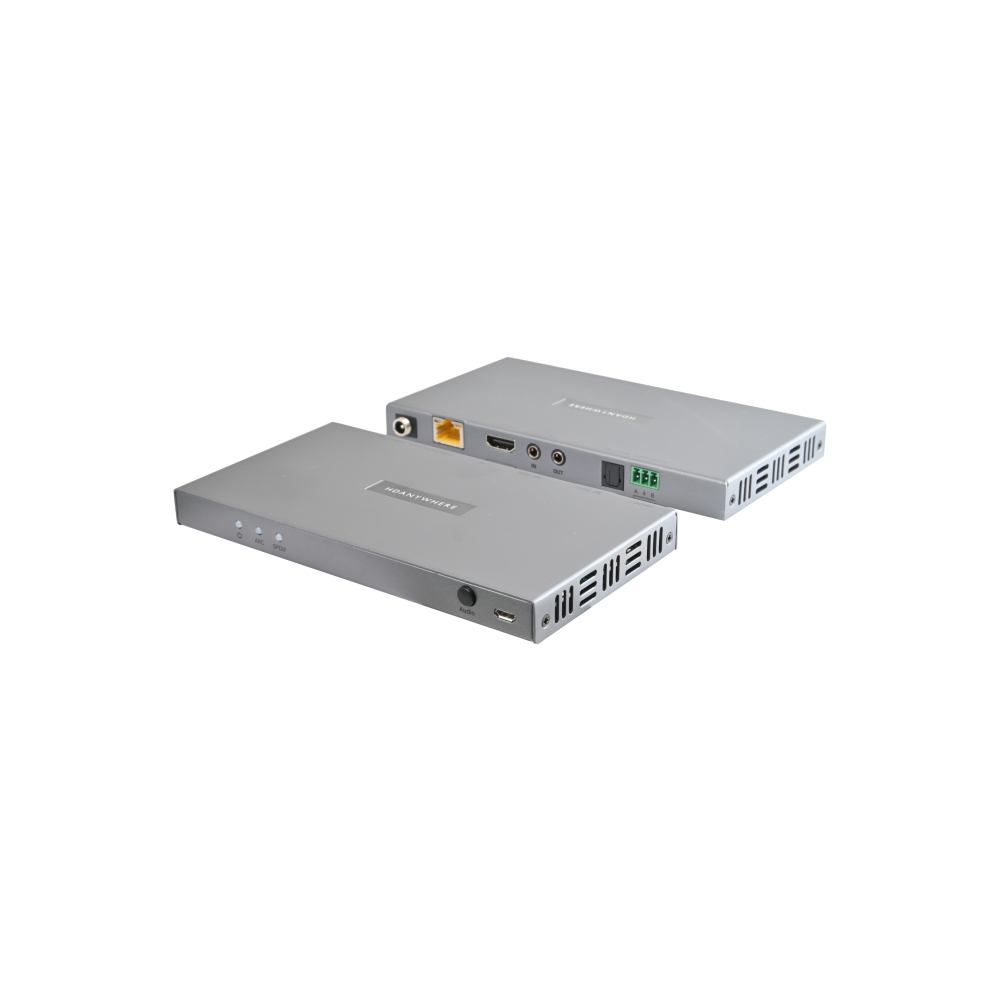

TX / RX form factor: Lightweight slender aluminium enclosure

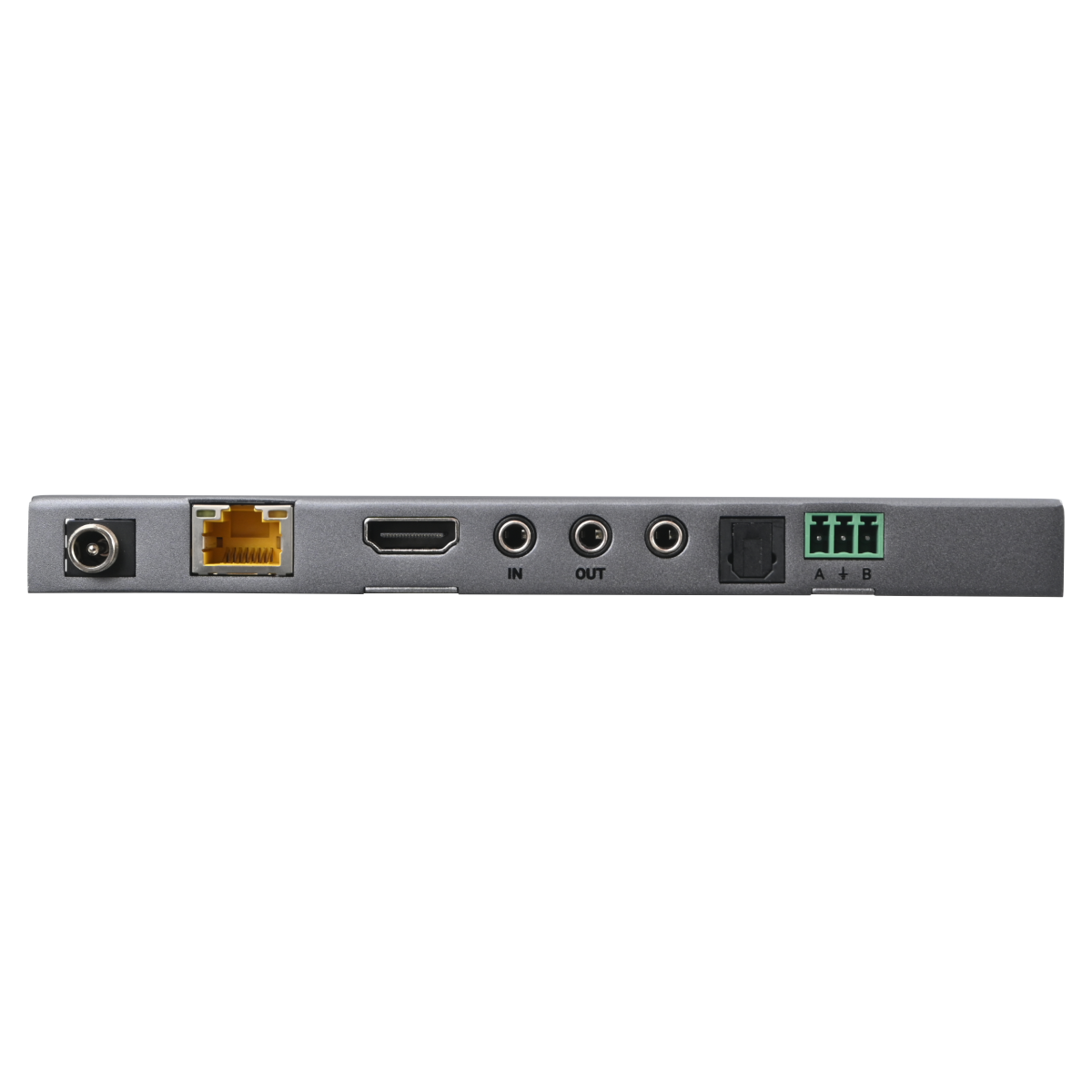

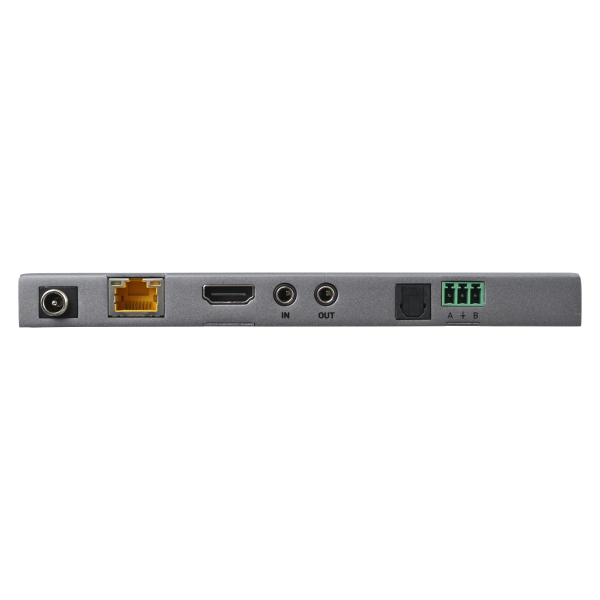

Inputs x outputs: TX HDMI in / RJ45 HDBaseT out / Optical out / RS232 /2x IR 3.5mm jack (in = to RX / out = from RX)
RX RJ45 HDBaseT in / HDMI out / Optical in / RS232 /2x IR 3.5mm jack (in = to TX / out = from TX)
Transmission tech: HDBaseT 2.0 + TPC w/DSC
Video bandwidth: 594MHz clock / 18Gbps data
ESD protection: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Control: Bi-directional IR and RS232 + HDMI-CECpass through.
Device weight: 176g
Package weight: 1100g
Dimensions (W/D/H): 162 / 88 / 17 mm (TX and RX)
Power: 24V/1A DC screw type connector(US/EU standards, CE/FCC/UL certified)
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Relative humidity: 20~90 % RH (non-condensing)
Power consumption: 9.5W (max)
Guarantee: 2 year

Features

  • 18Gbps data rate throughout (up to 40m)*
  • HDMI® 2.0 (a/b) HDCP 2.2 compliant
  • Supports all current High Dynamic Range (HDR) formats inc. Dolby Vision®
  • RX>TX audio return via Optical ports
  • Two-way IR
